Digital Platform Integration
Adopt the digital platform to your operation
Cognisight is a leader in providing trusted innovative AI HSE embedded and automation solutions. CogniSight platform offers comprehensive AI-HSE Model system integration, hardware, software, customer-centric design services, and global logistics support; all backed by industry-leading front and back office e-business solutions.
Saabie Software Solution has always been using innovator in the development and manufacture of high-quality, high-performance computing platforms. We cooperate closely with our clients and partners to help provide complete solutions for a wide array of applications across a diverse range of industries. To realize our corporate vision of Enabling an Intelligent Planet, Saabie Software Solution continue collaborating and partnering for O&G and IoT solutions.
Saabie Software Solution quality and environmental compliance efforts include the following:
Online Support
Providing superior self-support mechanisms is one of the most essential parts of being a top-tier integration automation company, and we take pride in the outstanding level of service that we offer. To best support our customers, we’ve created a suite of useful interactive online tools
Certified Tracking System

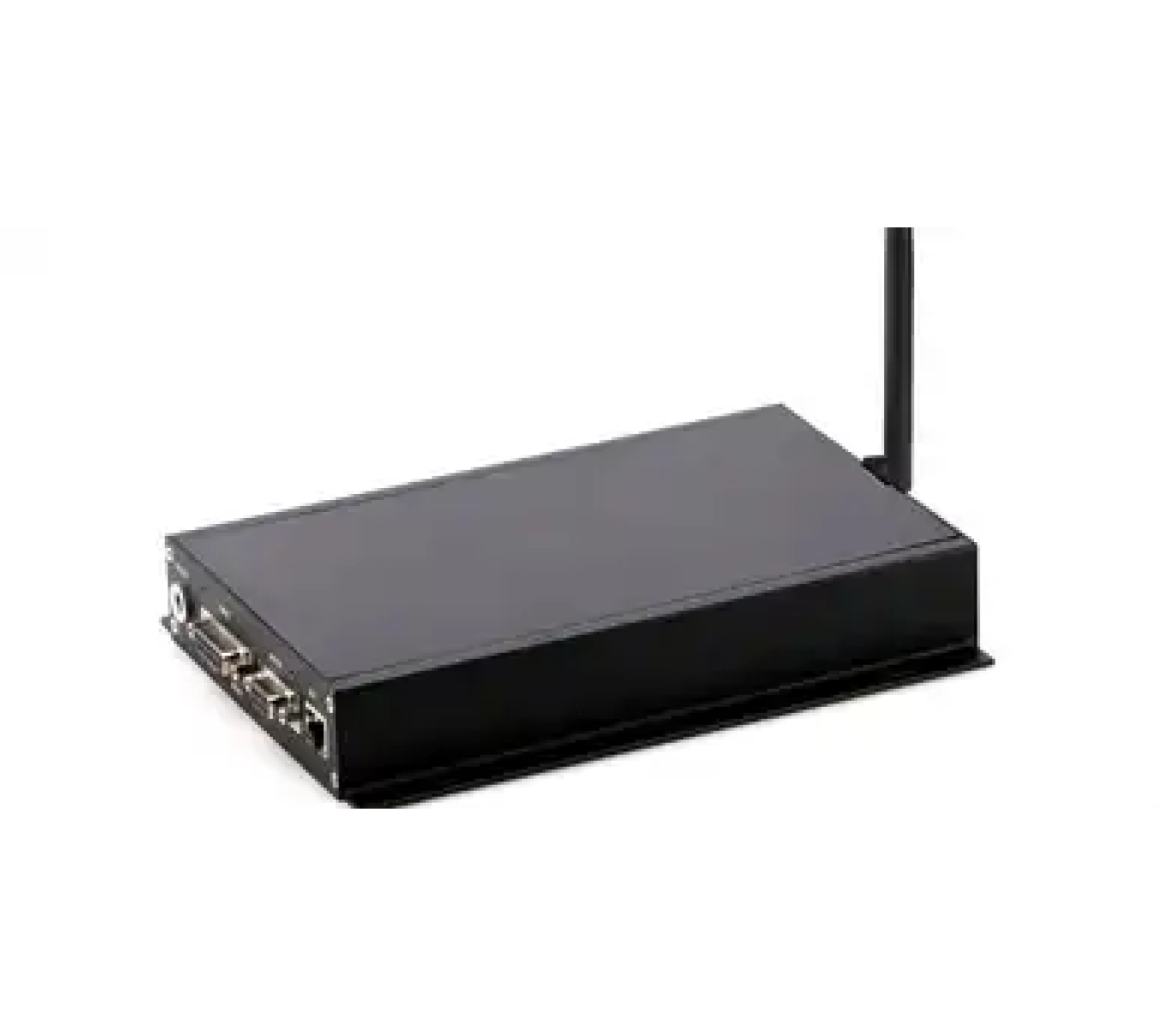

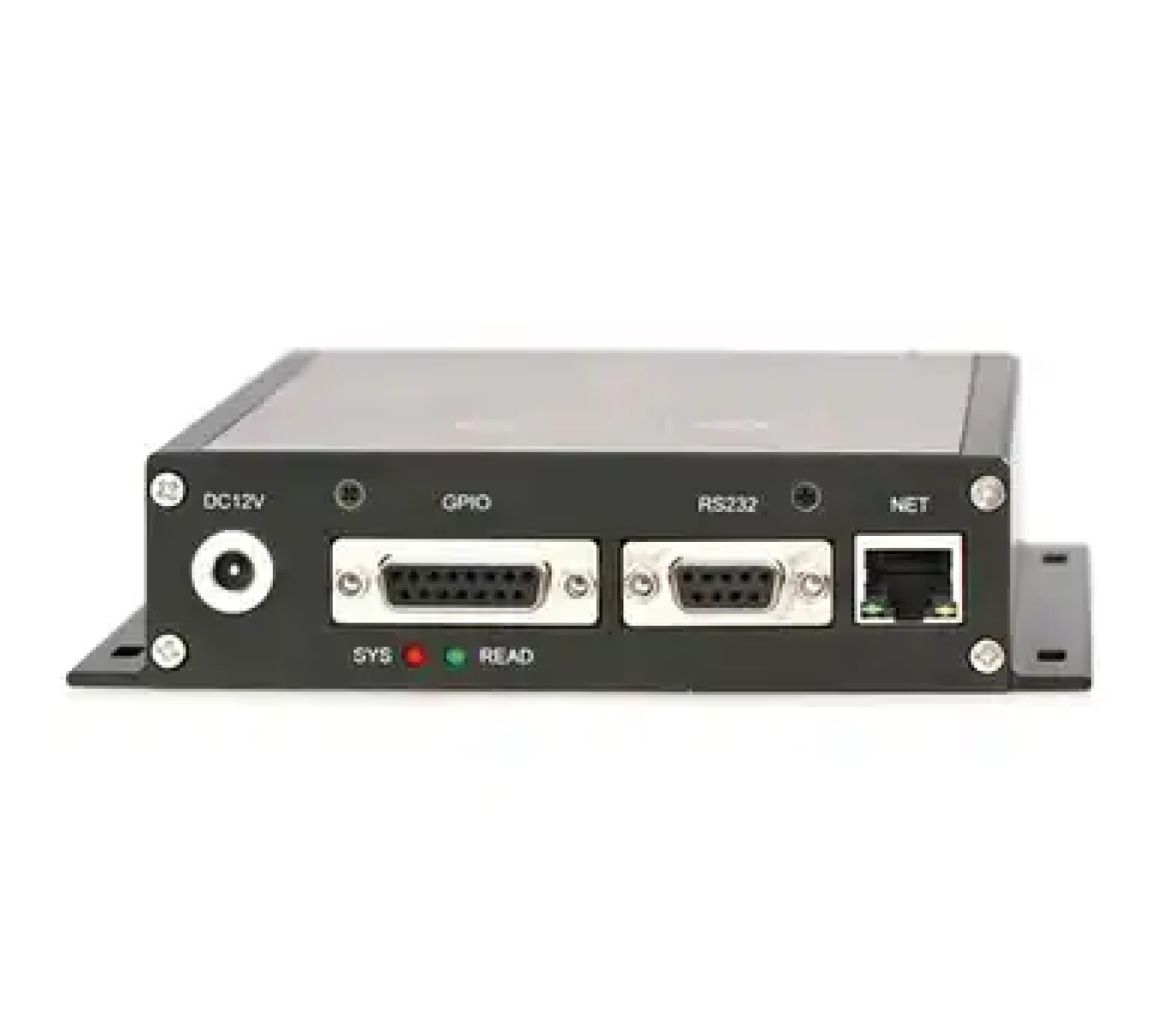

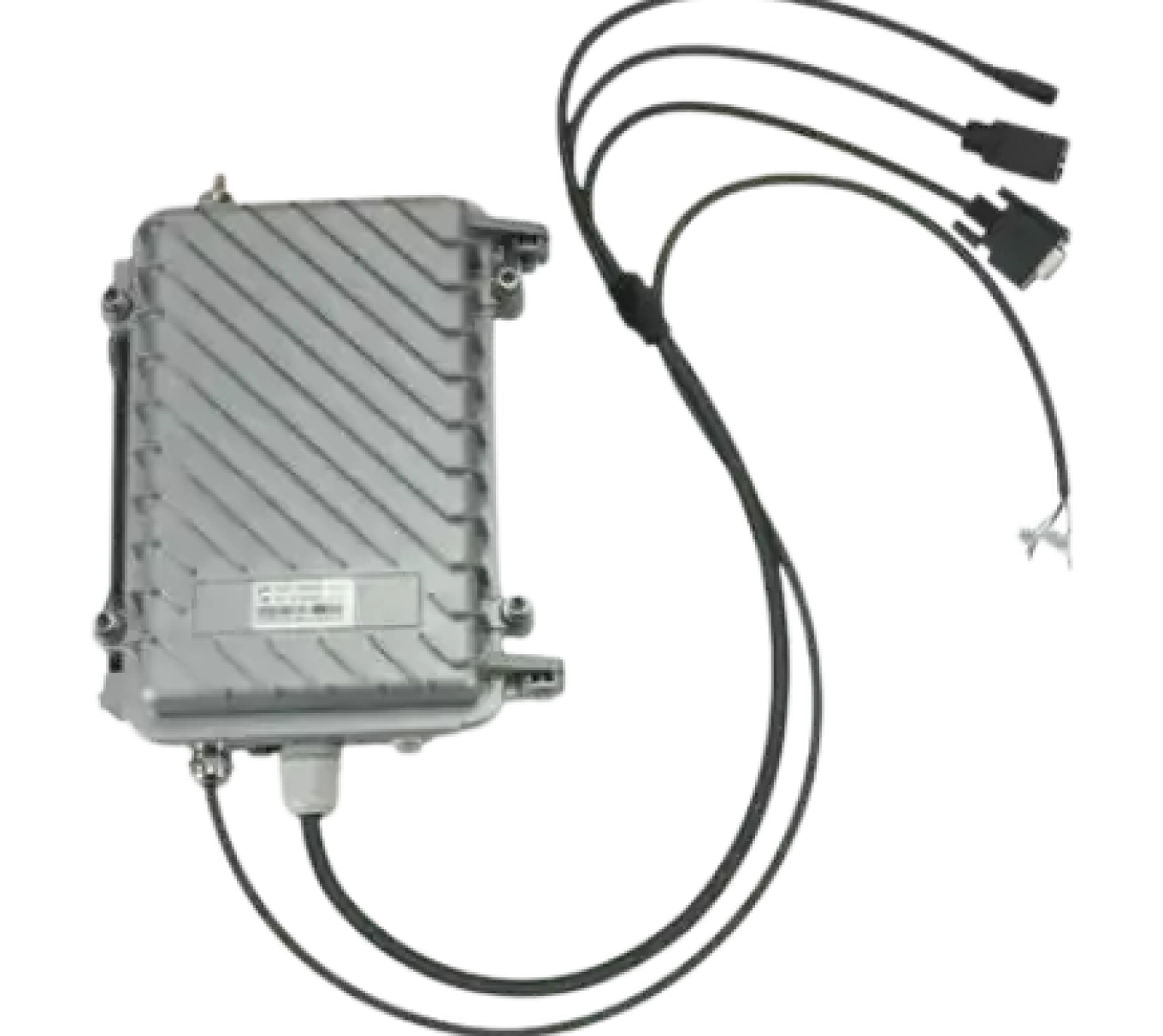

F2411-O 2.45GHZ Reader
Operating frequency 2.4GHz~2.5GHz ISM Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable
2.45GHz Active RFID Reader
TIntelligent transportation management; Asset identification, tracking and checking management; Orientation, tracking and checking people
F2420 2.45GHZ Reader IP67
Operating frequency 2.4GHz~2.5GHz ISM 0~100m (depend on different gain omni directional antenna. RSSI active reader adjusted less than 10m. Working Temperature: -20℃~+70℃

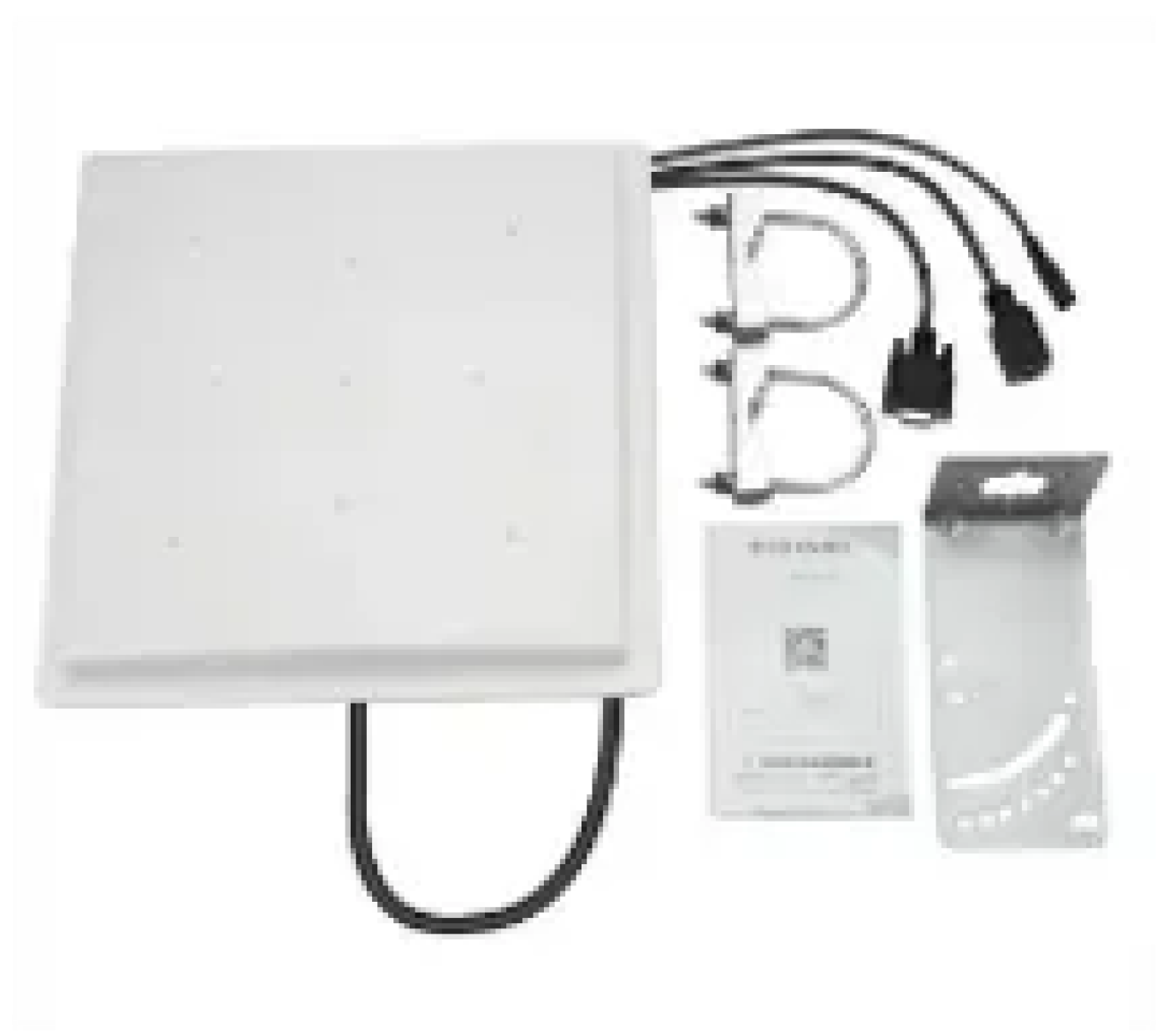

Mid-range Reader 840～960 MHz
Long-range UHF RFID Integrated Reader High-performance reader/writer designed for high challenging RFID application environment. High precision return signal strength (RSSI).

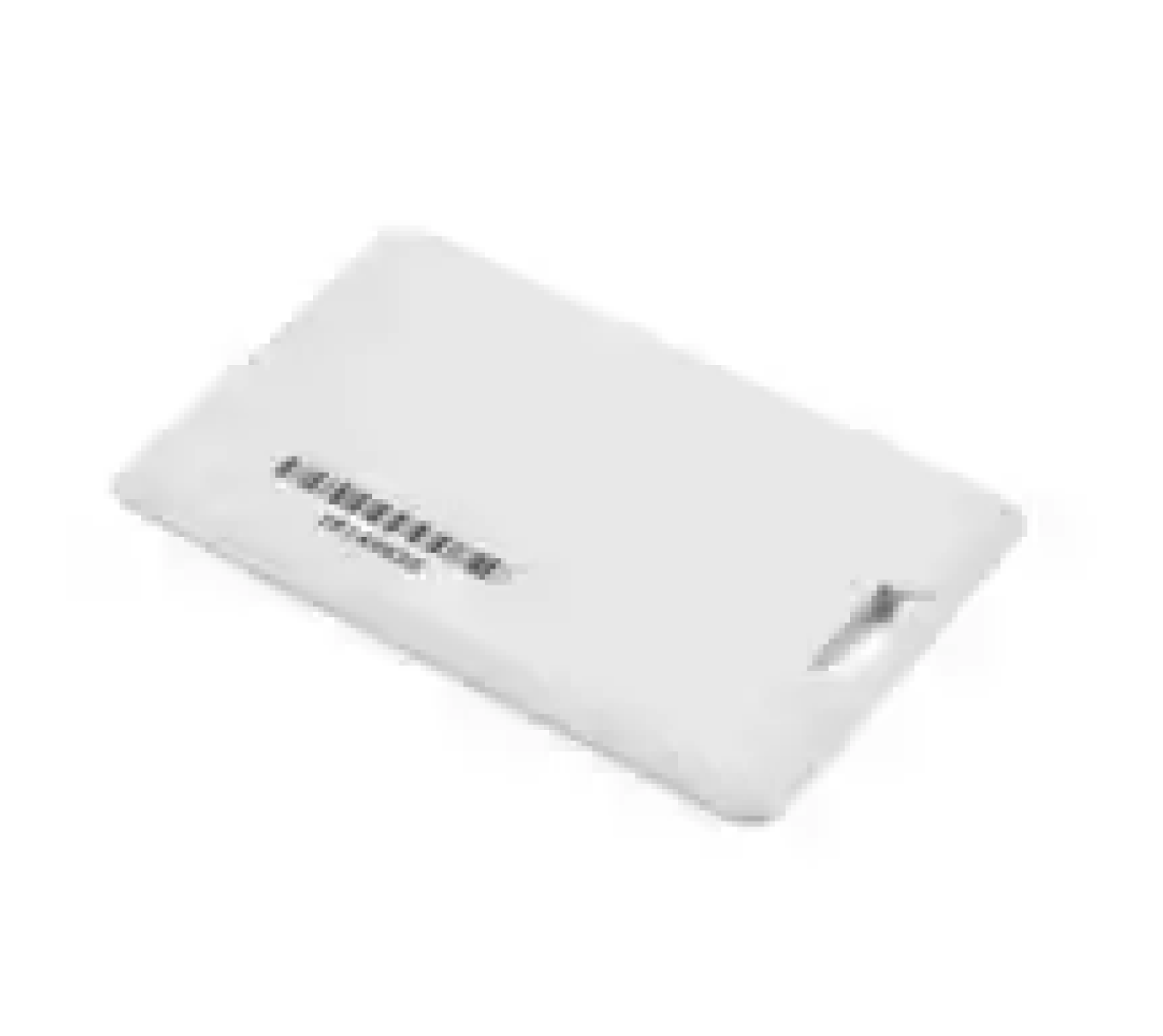

2,4 GHz RSSI RFID Active Tag
Long reading distance Ultra low RF power consumption, long life time. Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable. High protection grade

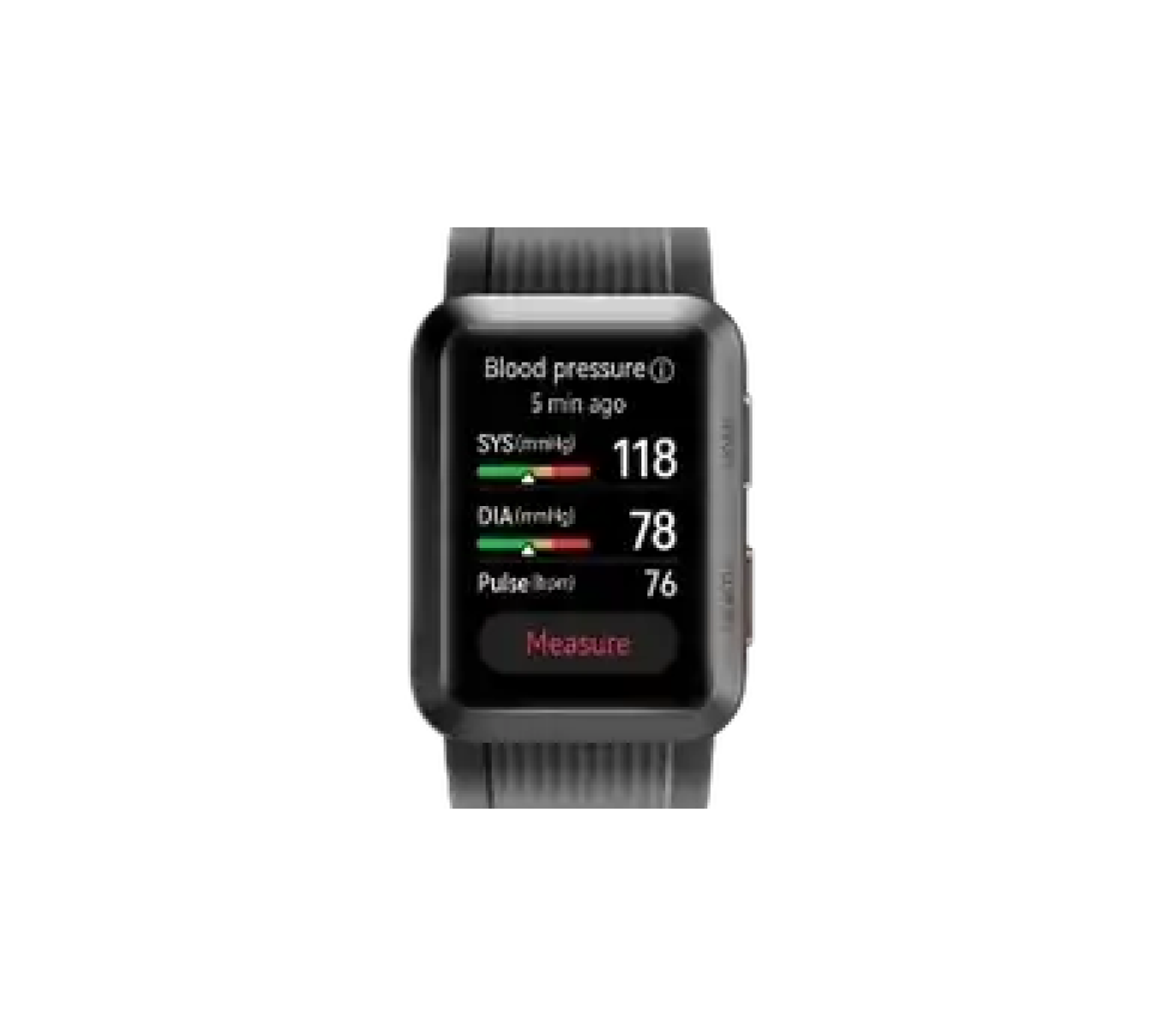

4G Active GPS Tracker
4G bracelet waterproof GPS tracker. Vital Monitoring, (Body Temperature, Heart Rate, Stress level, Blood Pressure, Blood Oxygen Saturation (SpO2). Long reading distance, Ultra low RF power consumption, long life time. IP68

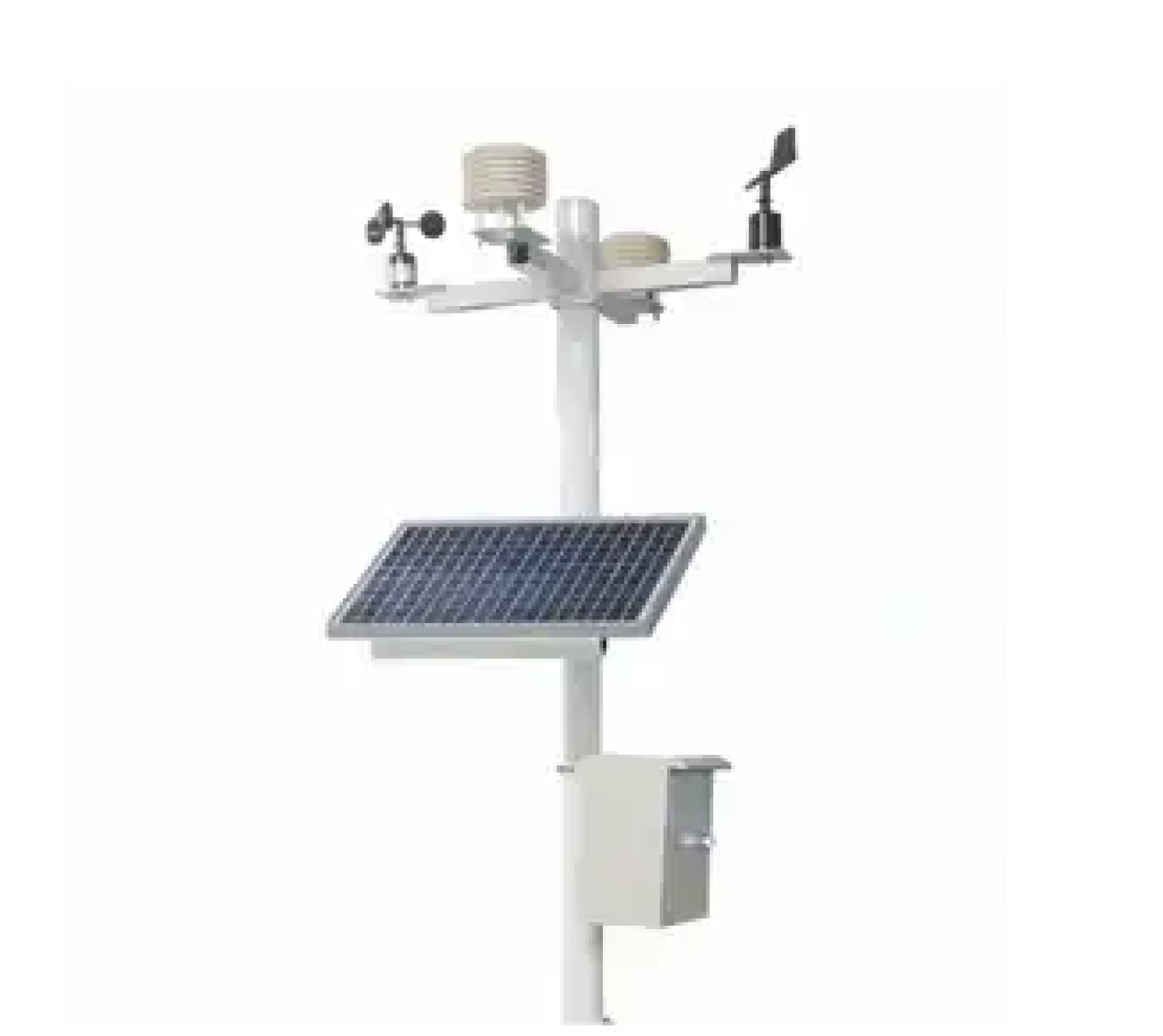

Integrated Weather Station
Air Quality monitoring station, will monitor and measure in real time pollutants present in the ambient atmosphere. Data on air pollutant levels can be used in epidemiological studies to understand the impact of air pollution on public health

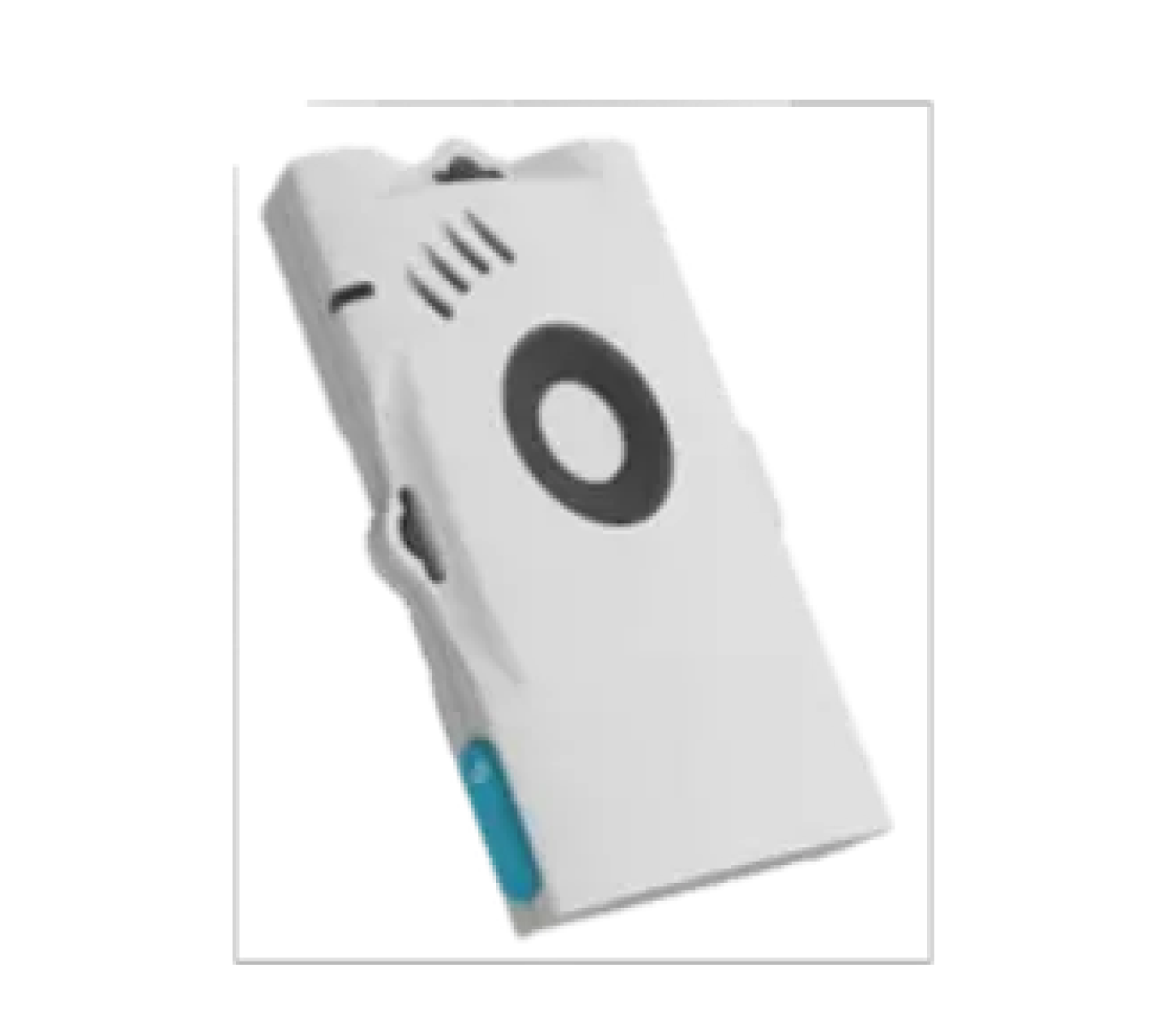

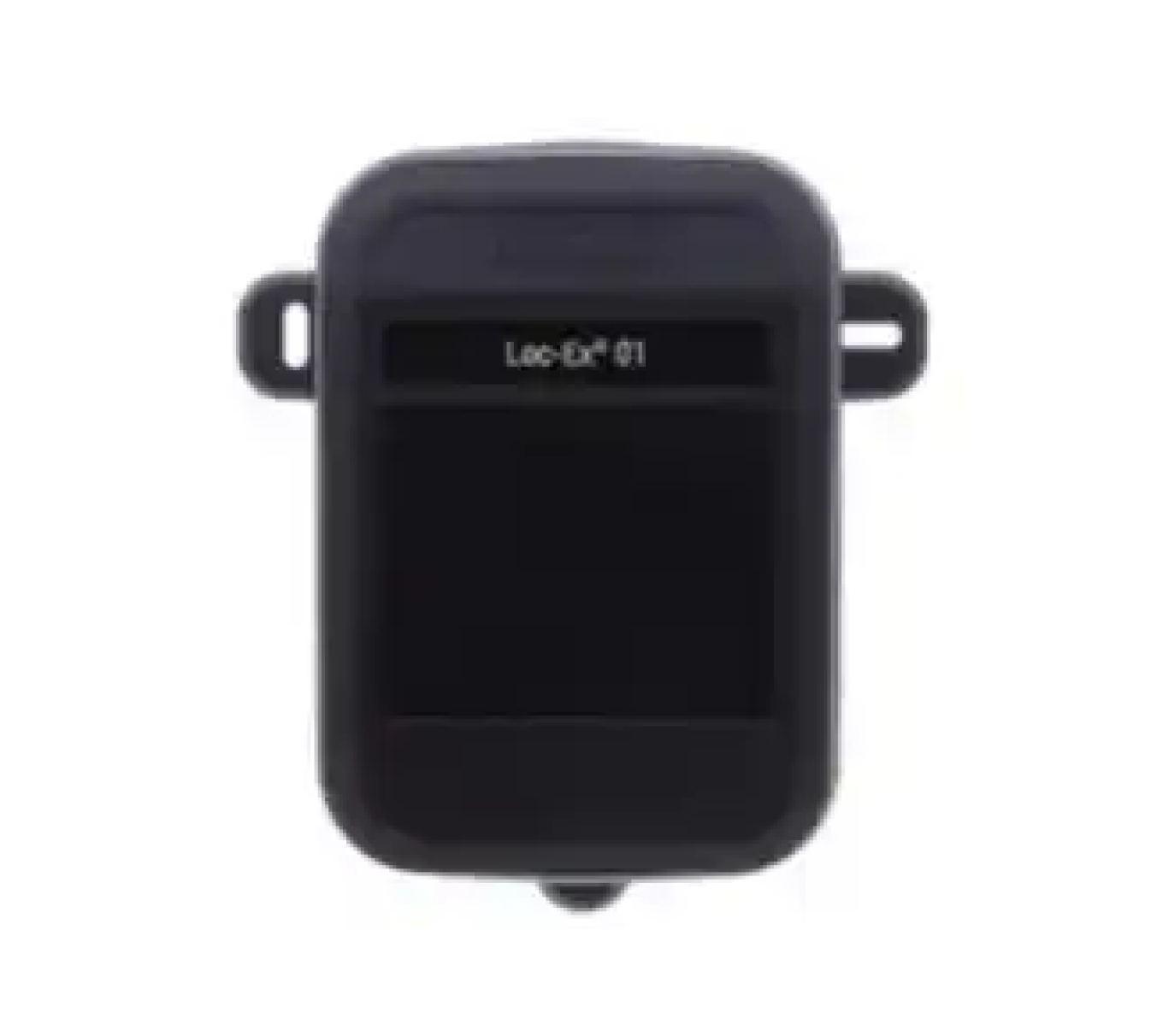

Smart Badge
LoRaWAN GPS – BLE ATEX Zone 1 and 2 Smart Badge. Multi-mode tracker with embedded sensors combining GPS, Low-power GPS, and BLE geolocation
Beacon BLE
Beacon Zone 0 - BLE iBeacon/Eddystone compliant. Meets Class1/Div1 and Zone 0 requirements and approvals for US, Canada, Europe (ATEX), & IECEX.(No-LoRaWAN)

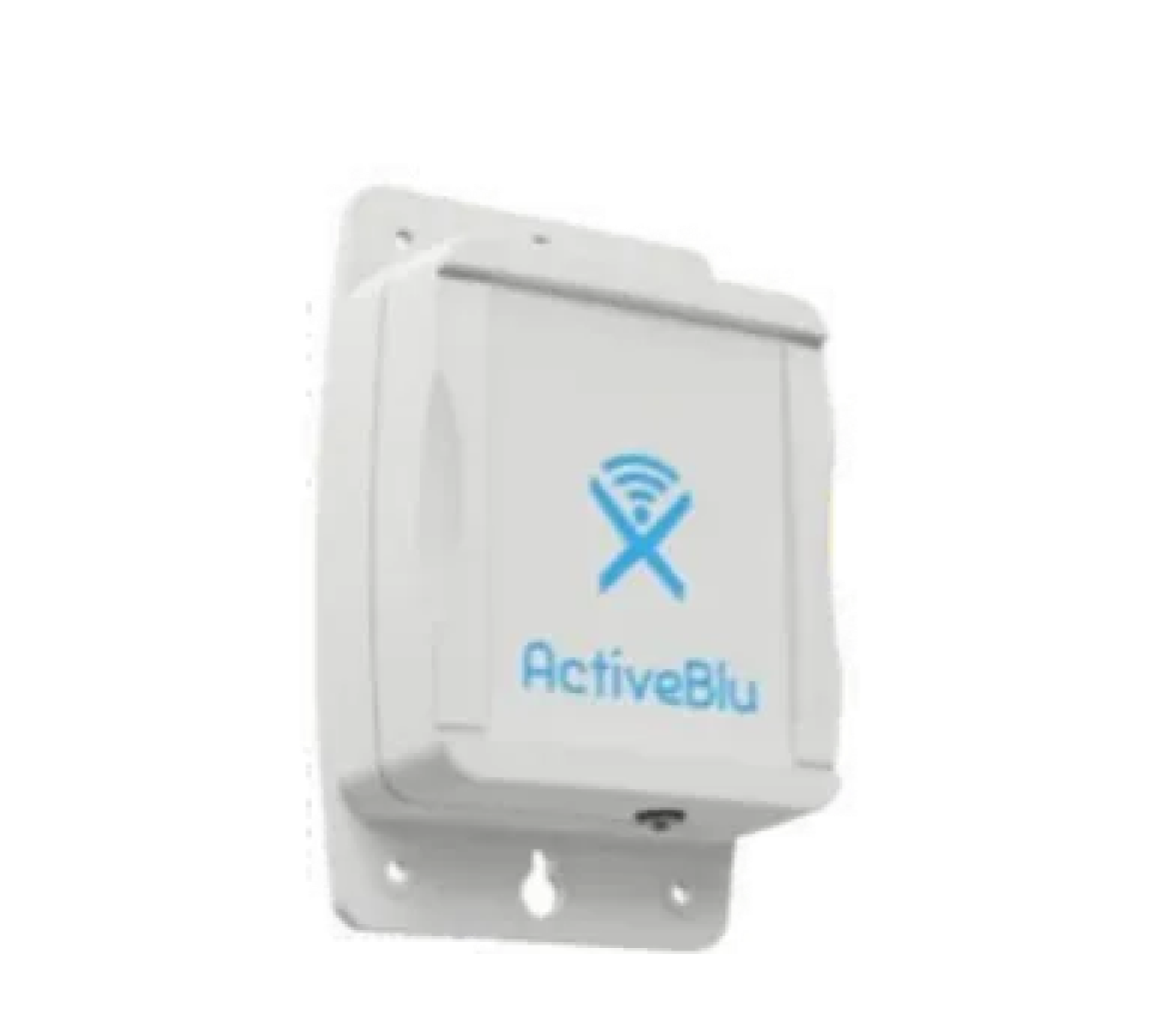

Beacon BLE
Intrinsically Safe Beacon ATEX / IECEx Zone 1, Compatible with BT Low Energy from version 4.0. Range indoor up to 30 m, outdoors up to 200m. Open firmware for individual BLE profile development (TI CC2541). (No-LoRaWAN )
LoRaWAN Gateway
Zone 1/ Div 1 wireless system ATEX & IECEx Zone 1 and 21 certified US & Canada Class I Div 1 / Zone 1 and 21 certified. Can be used with existing Outdoor LoRaWAN gateway approved by the TRA

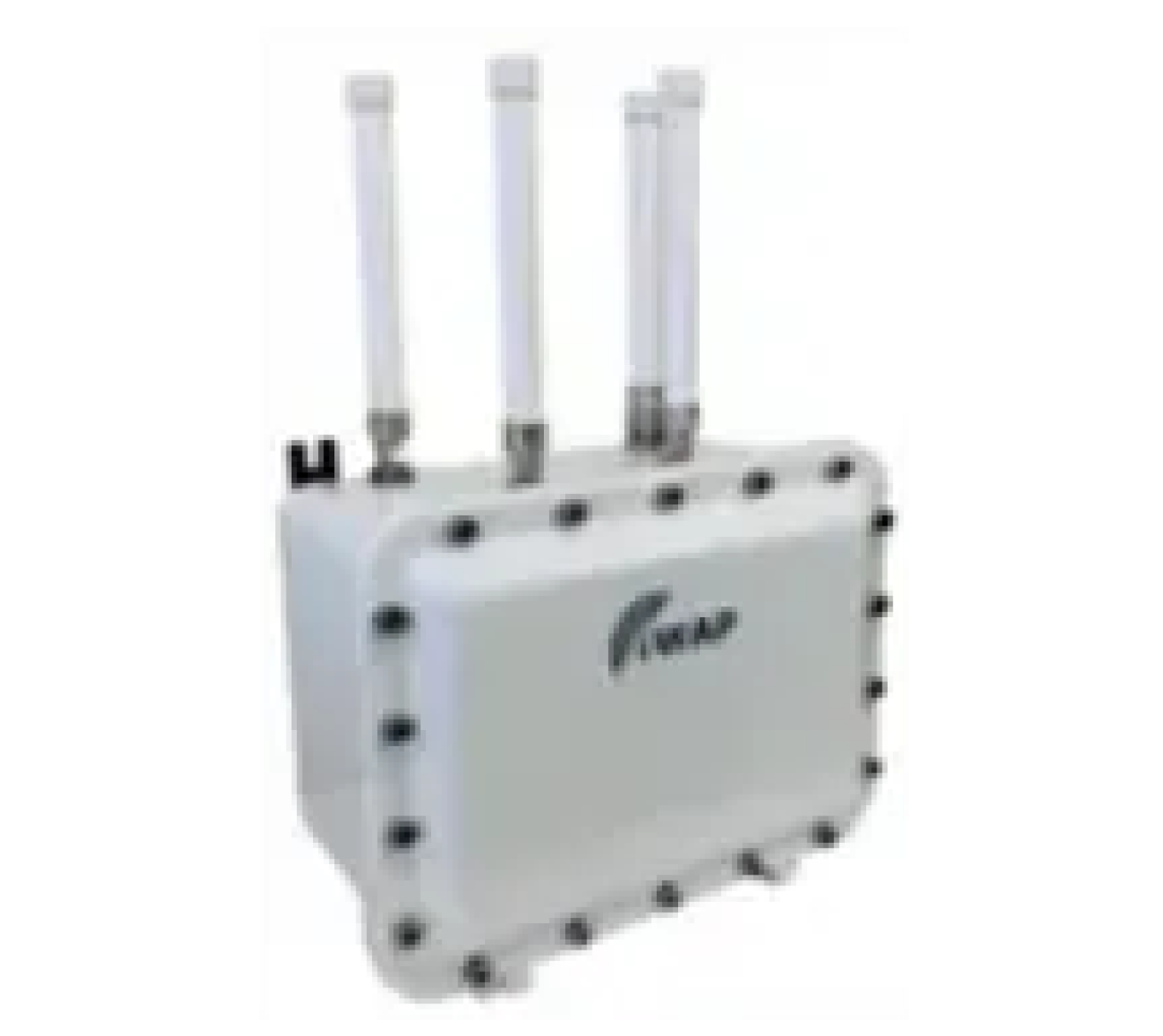

LoRaWAN Gateway
Zone 2/ Ex IoT Gateway Ex IoT Gateway is Rated IP67 and ATEX/Zone 2 certified, the gateway designed for outdoor installations where combustible gasses, vapors or liquids may be present
Certified Tracking System
Embedded Computers
Embedded PCs are a full range enclosures systems designed for Mini-ITX motherboards and 3.5" single board computers, featuring optimized mechanical design and flexible I/O interface options

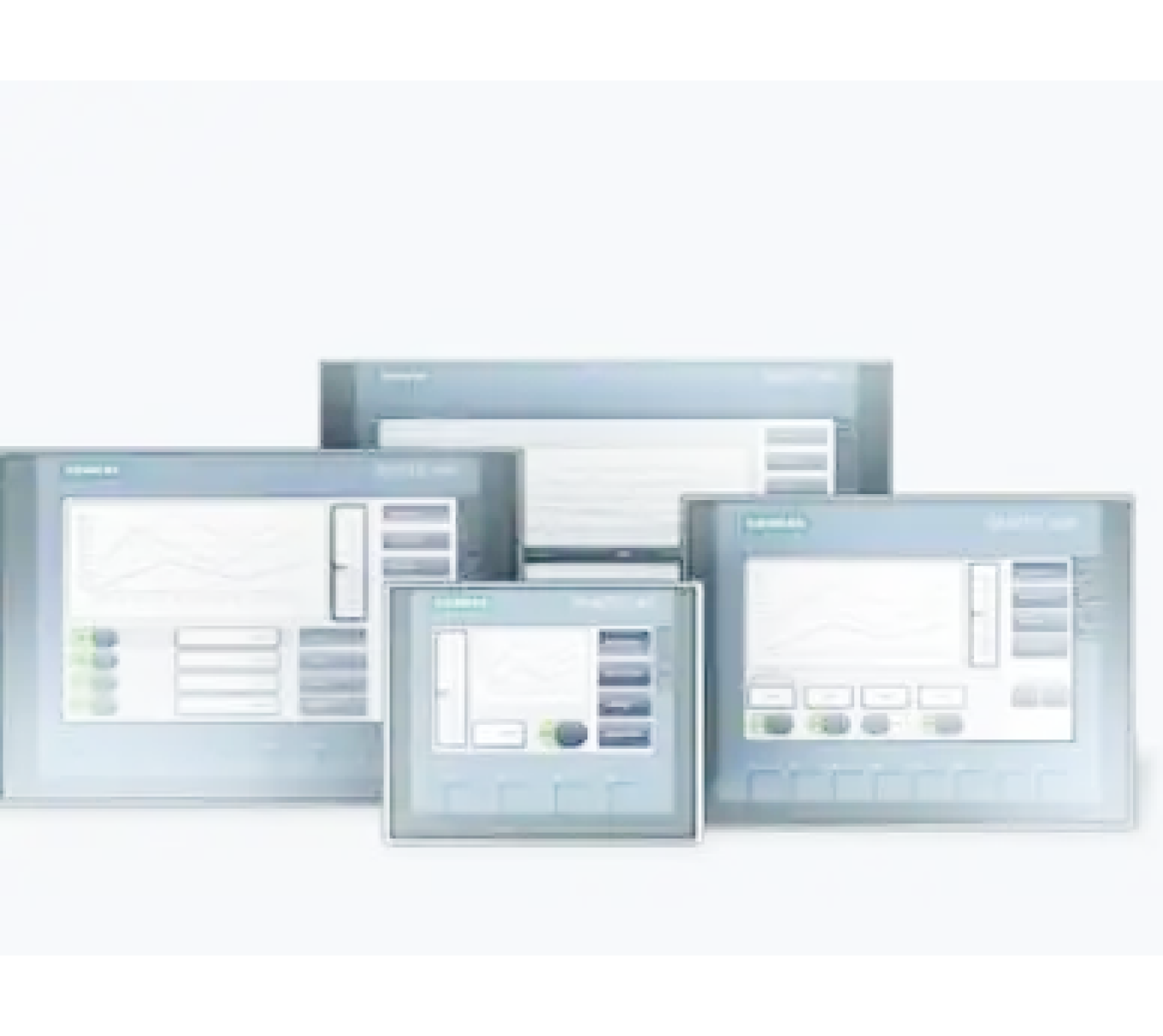

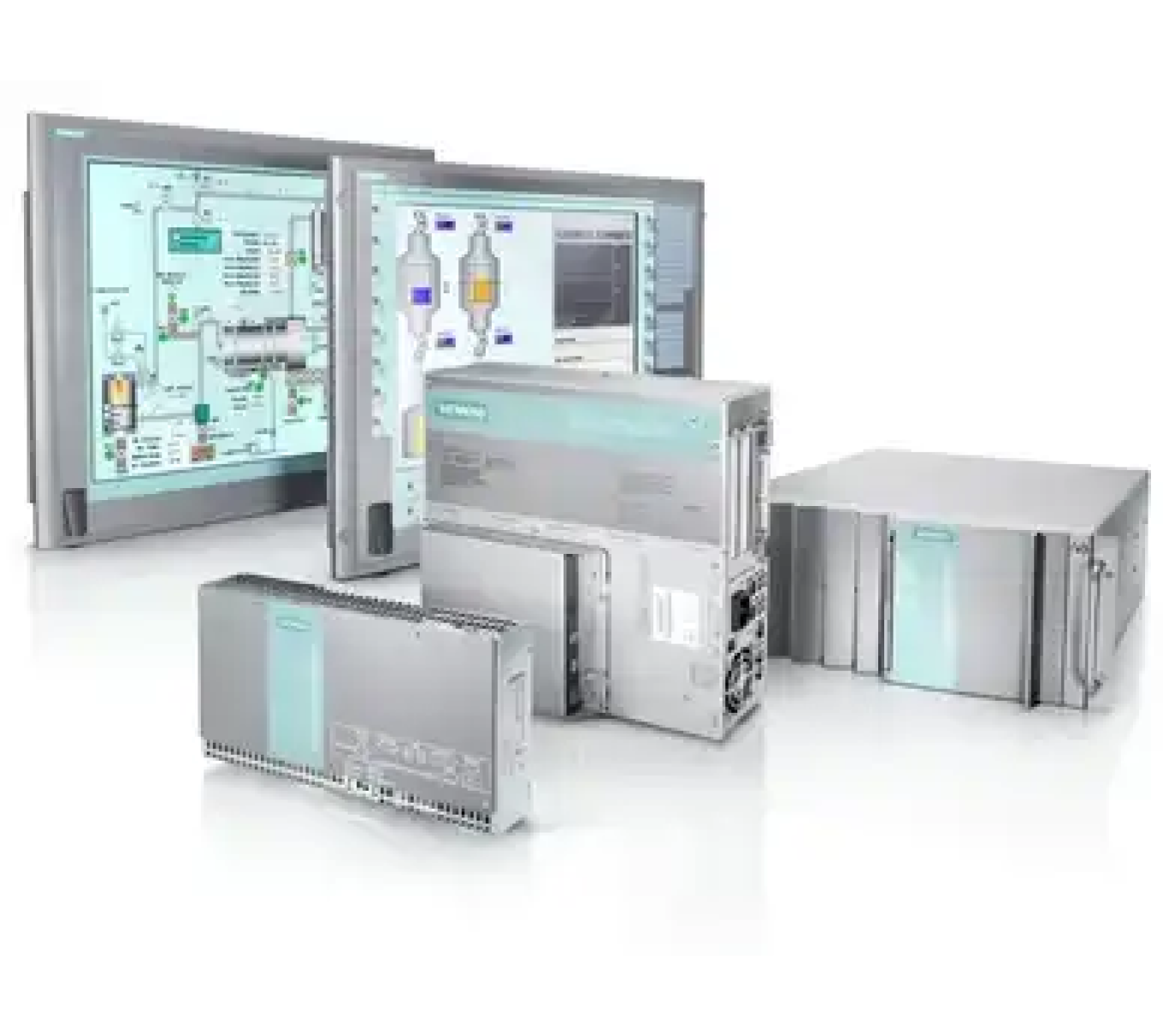

Industrial Panel PCs & Monitors
Industrial Display Systems provide a wide range of reliable displays from 5.7" to 55" including LCD displays, touch screen panels, outdoor displays and digital signage displays

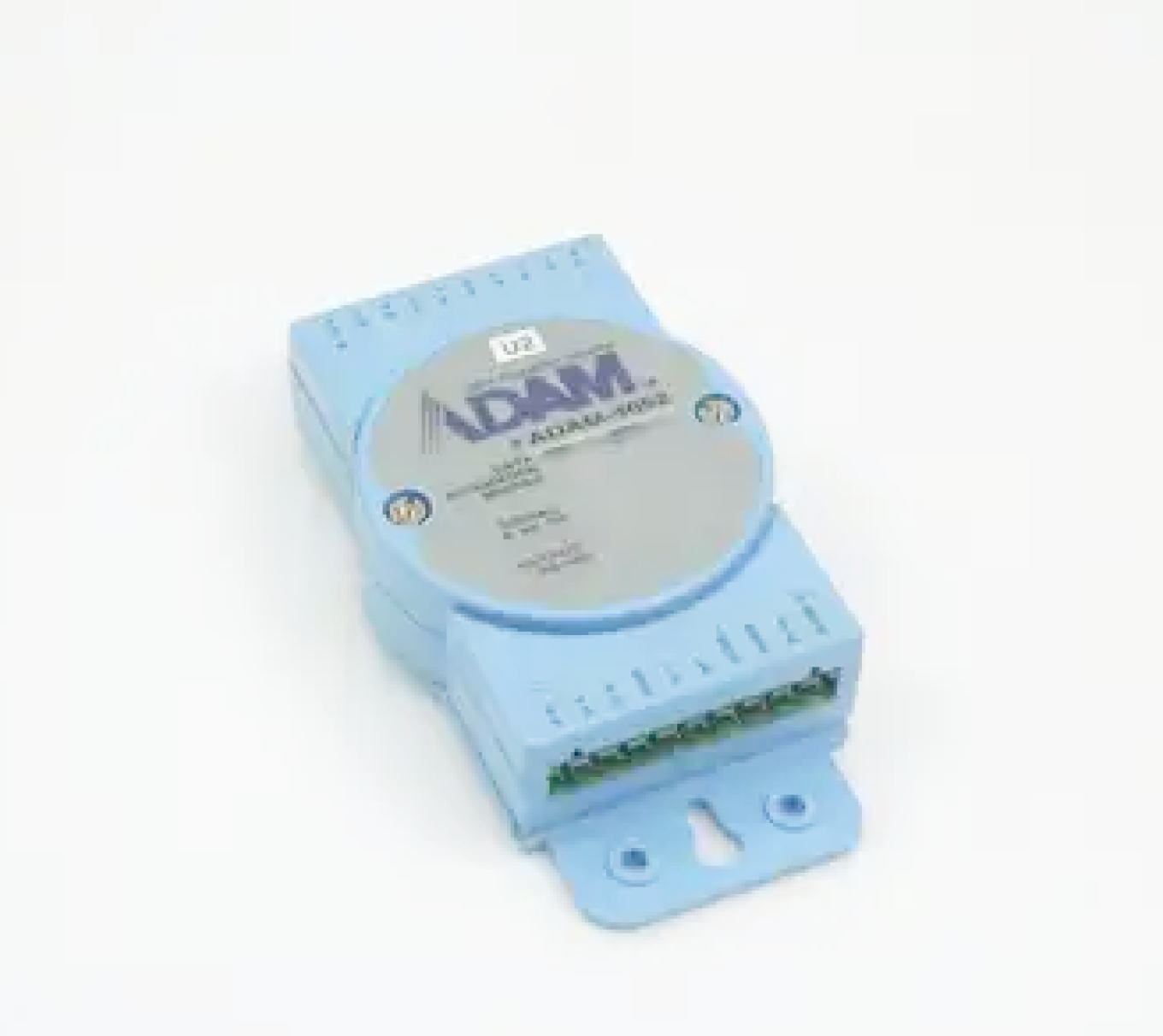

Data Acquisition Modules
DAQ series are used in multiple industrial data acquisition field, DAQ card, DAQ I/O products and Machine Condition Monitoring software

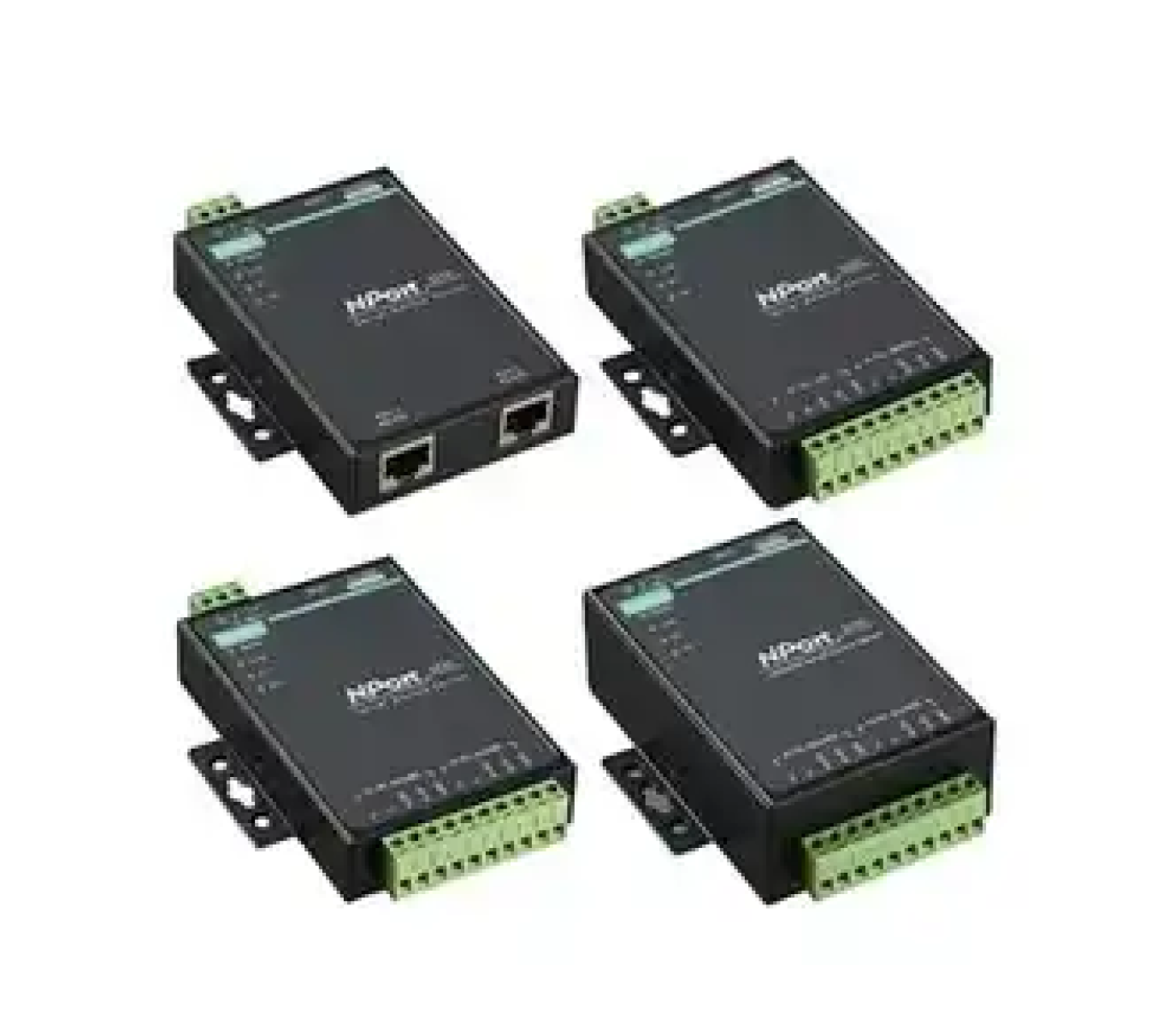

Serial Converters & Repeaters
Serial Media Converter and Repeaters provide conversion between serial networks and other media. Our Serial Converters can transparently convert RS-232 signals
Automation Computers
Embedded automation box PC capable of edge computing, bridging the gap between IT and OT. Flexible IoT gateway with each series coming in three sizes
Ethernet Switch Communication
Industrial Ethernet solutions provide an abundance of product options including managed and unmanaged switches, Gigabit Ethernet switches, PoE switches
System Environment
Intelligent & Secure Platform

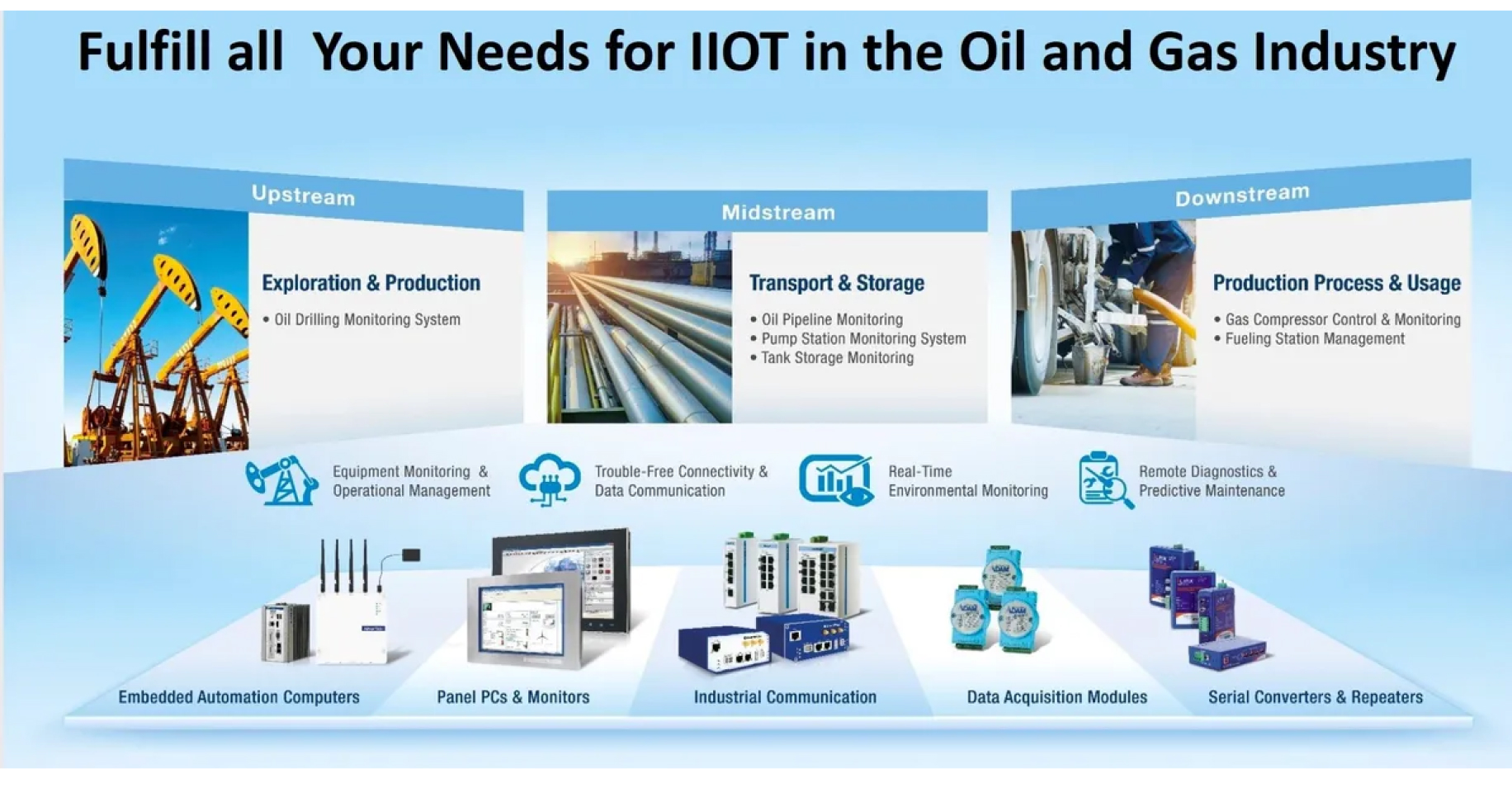

As the development of sensing, data acquisition, and wireless technology evolves, more and more industrial IoT practices are coming on-line. In the near future, there will be billions of connected devices performing an array of functions: collecting data, monitoring facilities, and executing remote control. SAABIE Software Solution offers top-tier computing, communication, and sensing capabilities to power and energy, environmental monitoring, and equipment operation and maintenance markets, all of which can be referred to as “Energy” applications.
In order to implement real-time 24/7 monitoring, the new "SAABIE Software Solution DEVICE" Platform management solution needed to provide comprehensive intelligent remote control and management. This included: collecting data from front-end instruments and devices; properly configuring network systems based on site conditions and transmission distance; utilizing data gateways to completely record and protect data; and providing a feature-rich user-friendly management platform.
In addition to comprehensive functionality, the software needed to allow users to design their own human machine interface (HMI) applications.
Due to the harsh climate and the challenging environment around the field, related hardware products needed to have rugged and durable characteristics capable of withstanding harsh conditions (ATEX/IEcex, Class I, Class II, etc...).

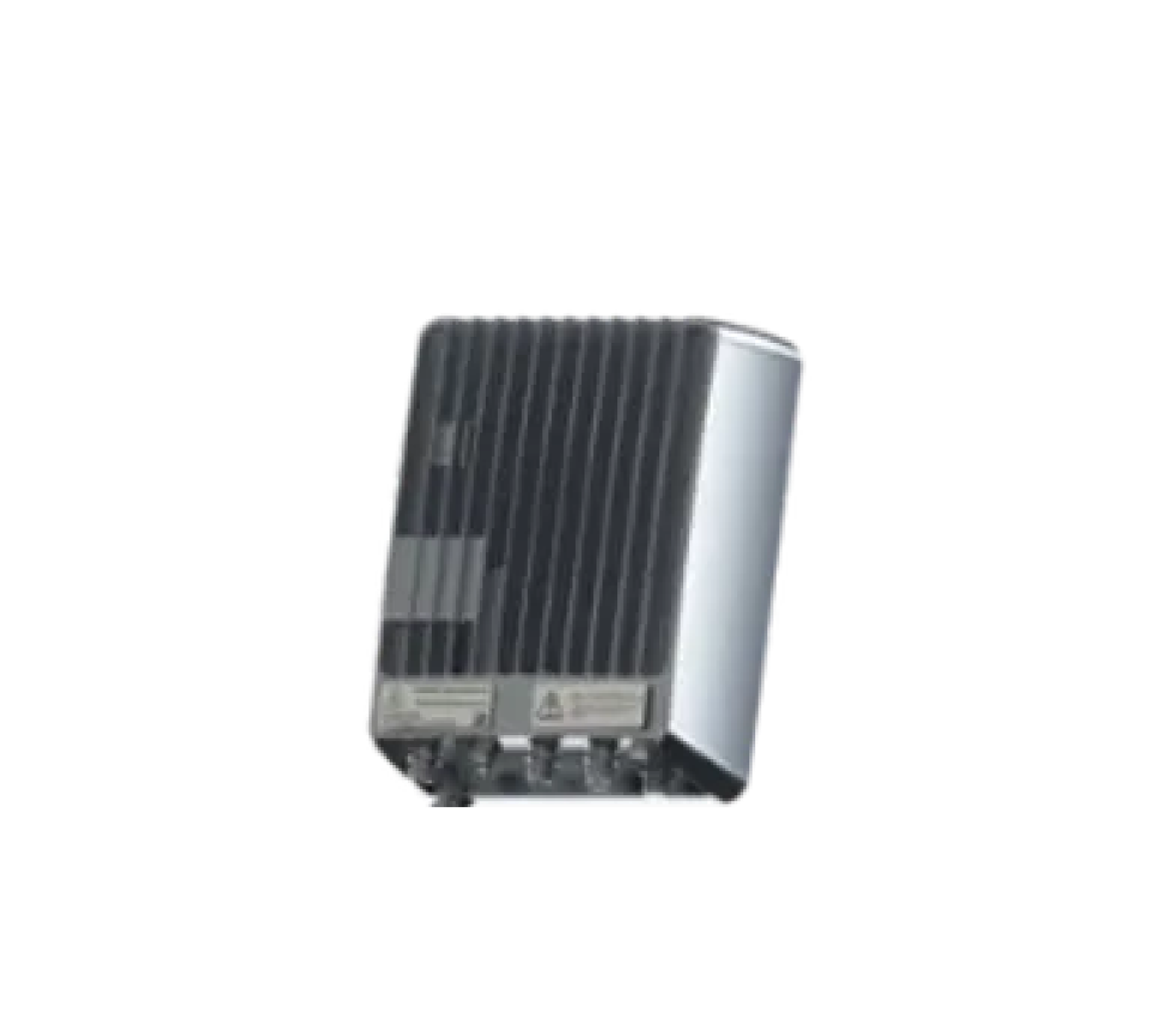

Designed for use in harsh industrial environments, "SAABIE Software Solution DEVICE" Platform features all-around IP69K/68-rated ingress protection and cable gland I/O connectors to provide a truly watertight solution that can withstand the most demanding applications
The waterproof enclosure features a front door for easy access and maintenance as well as a cable gland that offers further ingress protection, reducing the need for waterproof cables and wiring. This comprehensive protection also eliminates the need for a waterproof cabinet, allowing customers to use the "SAABIE DEVICE" gateway as a standalone data acquisition gateway.
Moreover, with the provision of standard M.2 2230 Wi-Fi and M.2 3052/3042 5G/LTE sockets, "SAABIE DEVICE" Platform gateway offers expandable wireless, GPS connectivity for remote communications and data transfers.
Hardware specifications:
Intel® Atom™ E3950 quad-core processor with 8GB DDR3L memory
2 x Gigabit Ethernet, 2 x isolation protected RS-422/485, 1 x RS-232 console port
IP69K/68 rating for superior protection from water and dust
Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
Built-in TPM 2.0 for hardware-based security
Expendable wireless communication with 1 x M.2 E-key, 1 x M.2 B-key socket for WIFI, LTE and GPS
Easy maintenance and installation with front door and cable gland design
Improve Performance with Technology
Certified Engineers
SAABIE Software Solution Field, Drilling Reservoirs Engineers, Completion, Artificial Lift, Digital Engineers, fully trained in Harsh Zones, certified to deploy solution on Field, HSE, Nuclear Plant, Solar Power, Thermal Power, Offshore, Onshore platform, Security Pass, Mobile Team.
Digital Technology
Digital transformation has become a catchall term for reimagining business in the digital age: it can refer to any process that uses digital technologies to solve for changing business and technical requirement
Smart Industries
Industries rely on new technology to become more efficient, cost effective and reduce human error while increasing safety
Infrastructure Alliances
SAABIE Software Solution has established strong alliances with global technology and communication giants like IBM, Microsoft, HP, Google Cloud computing, Oracle, ABB, Advantech, Honeywell, Siemens, Dahua, Sony, LG, Speedcast, RigNet, as well as niche IT service providers
Software & Application Partners
Build a custom branded IP Digital Software and Platform as a Service (PaaS/SaaS) solution for you. Apis power business across every industry by increased productivity and innovation, increased safety and agility, decrease operation costs, then increase revenue growth as a direct result
Cloud Data Integration
Collect, Store and Sort your Stream data in the Cloud, fully integrated in third party integrator Cloud services for Security and Private protection data. Smooth transition, No Data Exposure, Data Access 24/7, Backup, Secure VPN, IPSEC, FW, DMZ, Encryption
DIGITAL PLATFORM GATEWAY
CogniSight is an edge AI enabled secure hardware platform gateway offering SCADA Monitoring System & Control, Real Time Safety Video Surveillance, Real Time Drilling Data reporting and aggregation, Reservoir monitoring & Performance Optimization, Real Time Visualization Data in 2D/3D, Cloud Computing Data Processing (Data Analytics) and Dashboard Data Reporting .
CogniSight incorporate AI and automation modules to streamline and automate workflows in order to take accurate and timely decision.
Monitoring Control Tracking Alerts
Real Time Compression Access
Real Time Reporting Data Access in your HQ, Control Room, Operation Center. 24/7 Data Access to your production capacity, real time performance monitoring using CogniSight environment
Gas Compressor Alarm
Compressor Monitoring Performance. Digital generation monitoring App embed the capability to automate and evaluate the Compressor performance, Adjust the performance prediction to actual operative condition in real time, accommodating process parameter variations
Flow Pressure visualisation
Measure fluid flow velocity. Sensors pointed into the flow . Stagnation pressure at the tip of the sensor and the static pressure at its side is measured yielding the dynamic pressure from which the fluid velocity is calculated using complex equation
Tank Monitoring Services
Simulate 2D visualisation by using Digital technology for Tanks. Monitor your fluid, remote program using the remote digital access mode
HMI/SCADA Monitoring
CogniSight Access SCADA Upstream
CogniSight DEVICE Increase Overall Reliability, Quality, and Efficiency Across Complex Systems. Supervisory control and data acquisition is a control system architecture comprising computers, networked data communications and graphical user interfaces for high-level process supervisory management
HMI/SCADA software package integrated

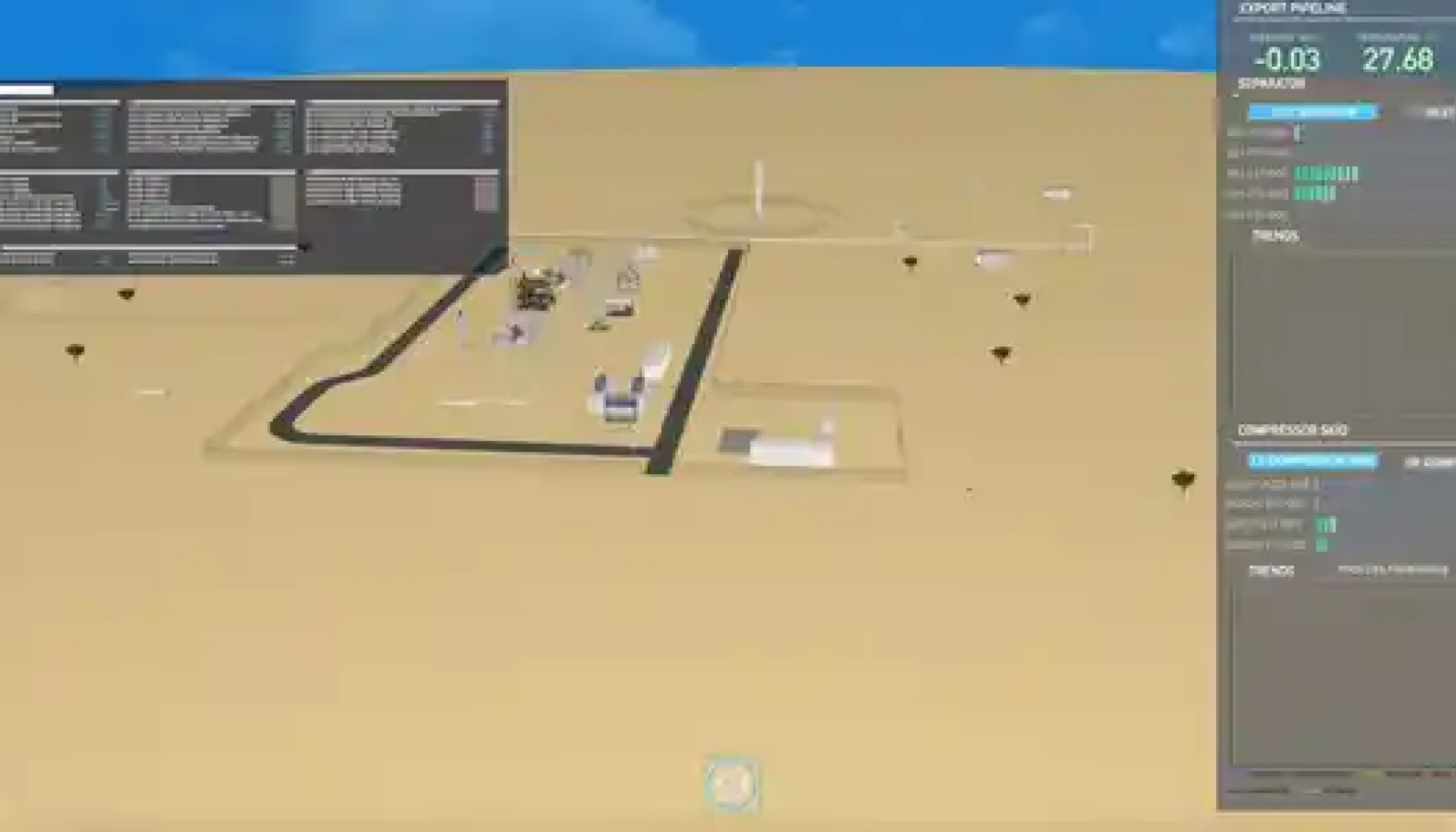

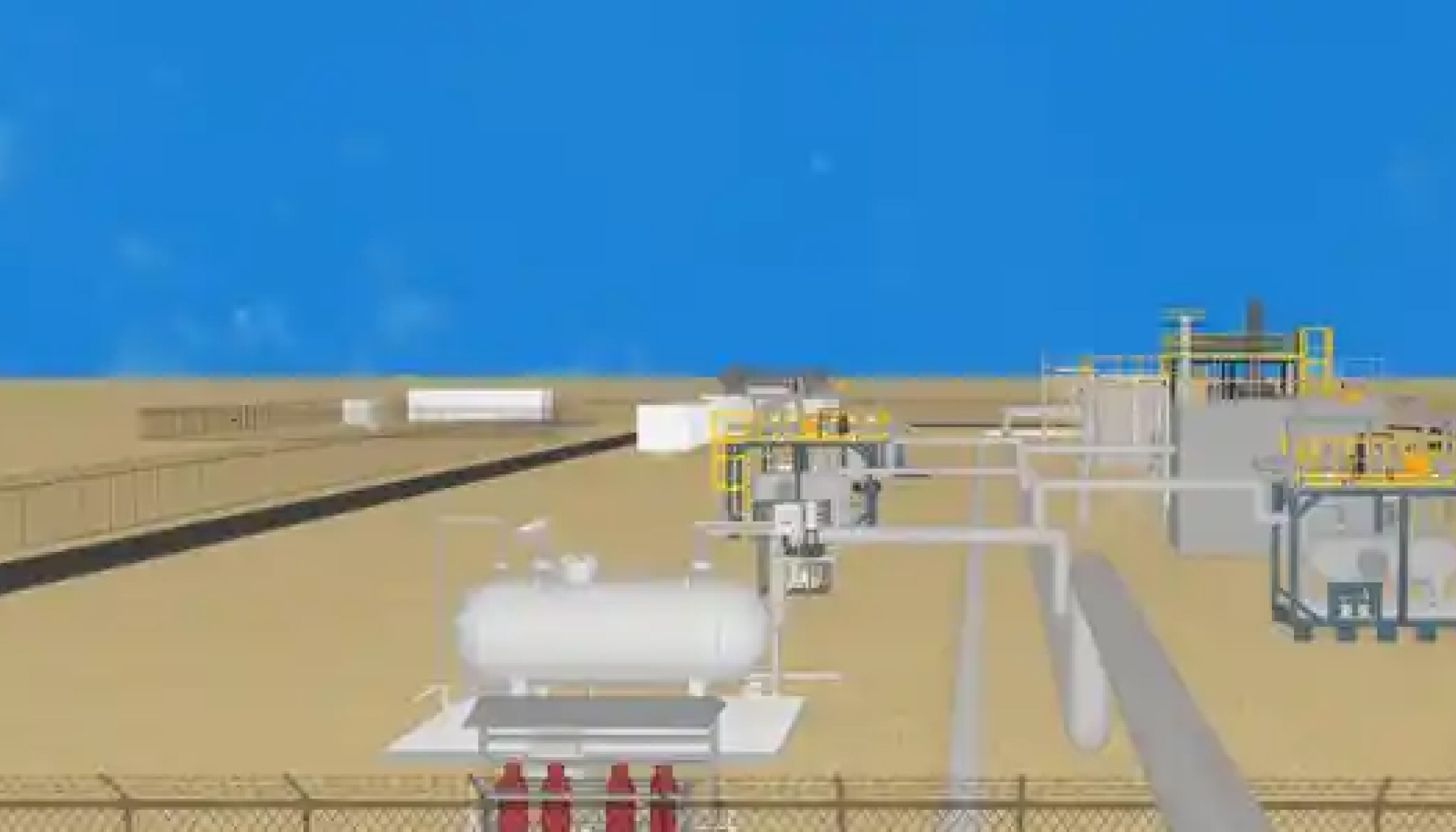

Real Time Data Visualization 2D & 3D (Mobile, Desktop Access)
CogniSight Interface is a browser-based software package for human-machine interfaces (HMI), supervisory control, and data acquisition (SCADA). All the features found in conventional HMI and SCADA software packages including animated graphics displays, real-time data control, trends, alarms, and logs are available in an ordinary browser. . Its basic components include SCADA node, project node, client and thin client.

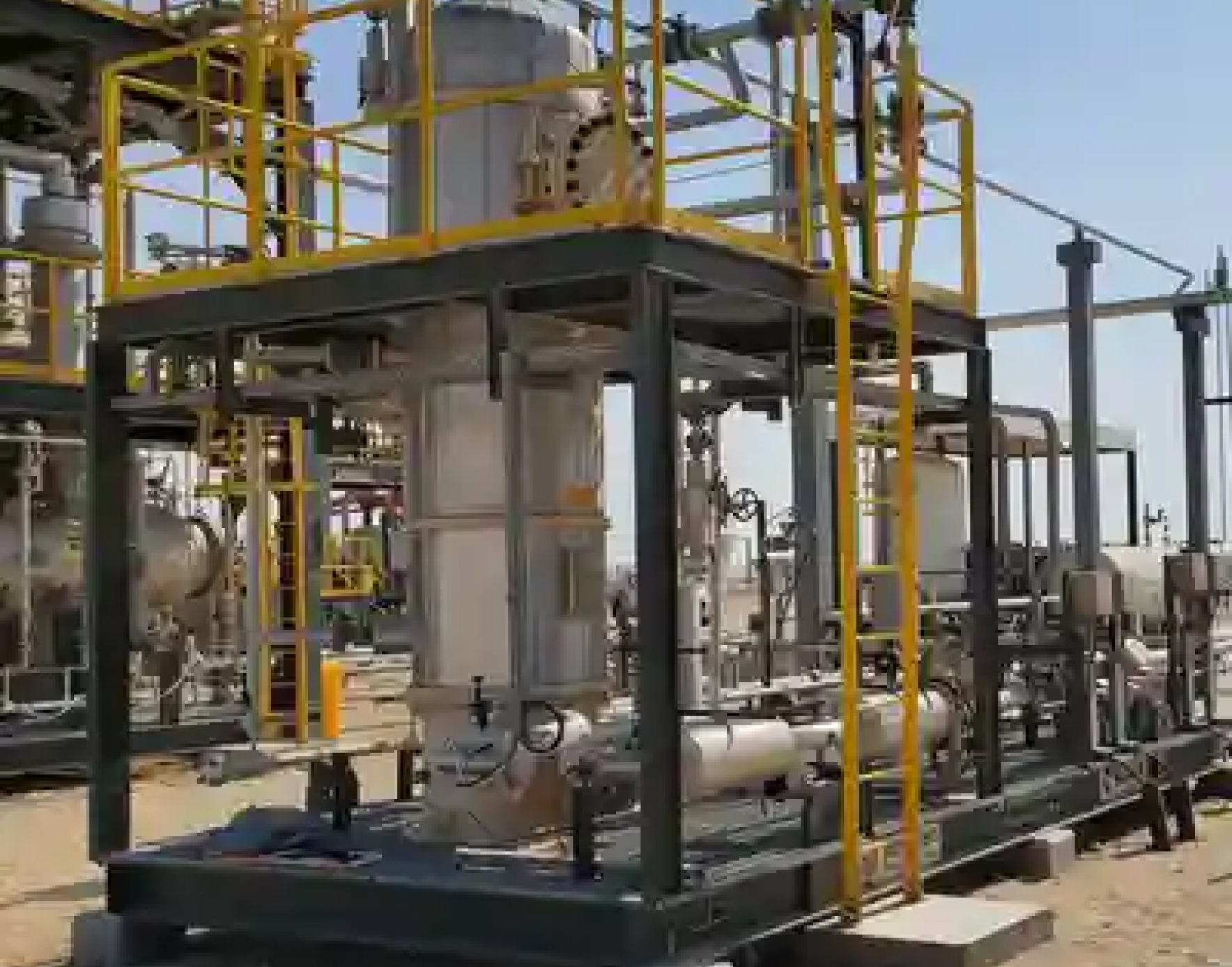

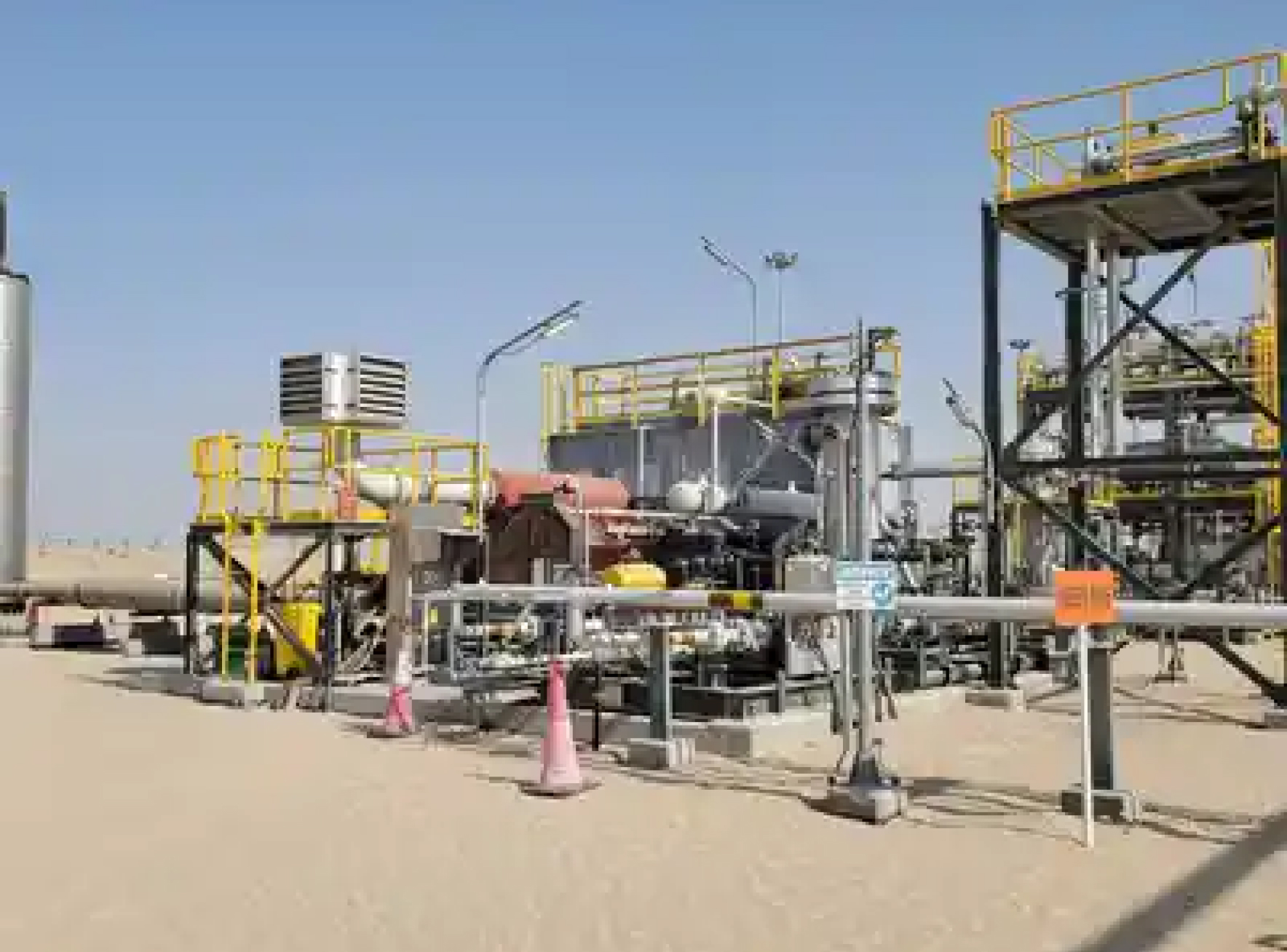

Production Facility Control
EPF Monitoring Midstream
CogniSight DEVICE Monitors engine operational data, such as speed and load control visibility. Collecting and aggregating data for analysis and overall equipment efficiency
Supervisory control and data acquisition systems in EPF primarily acquire real-time factory meter data , alerts, and alert design. These systems then give immediate feedback to management systems.

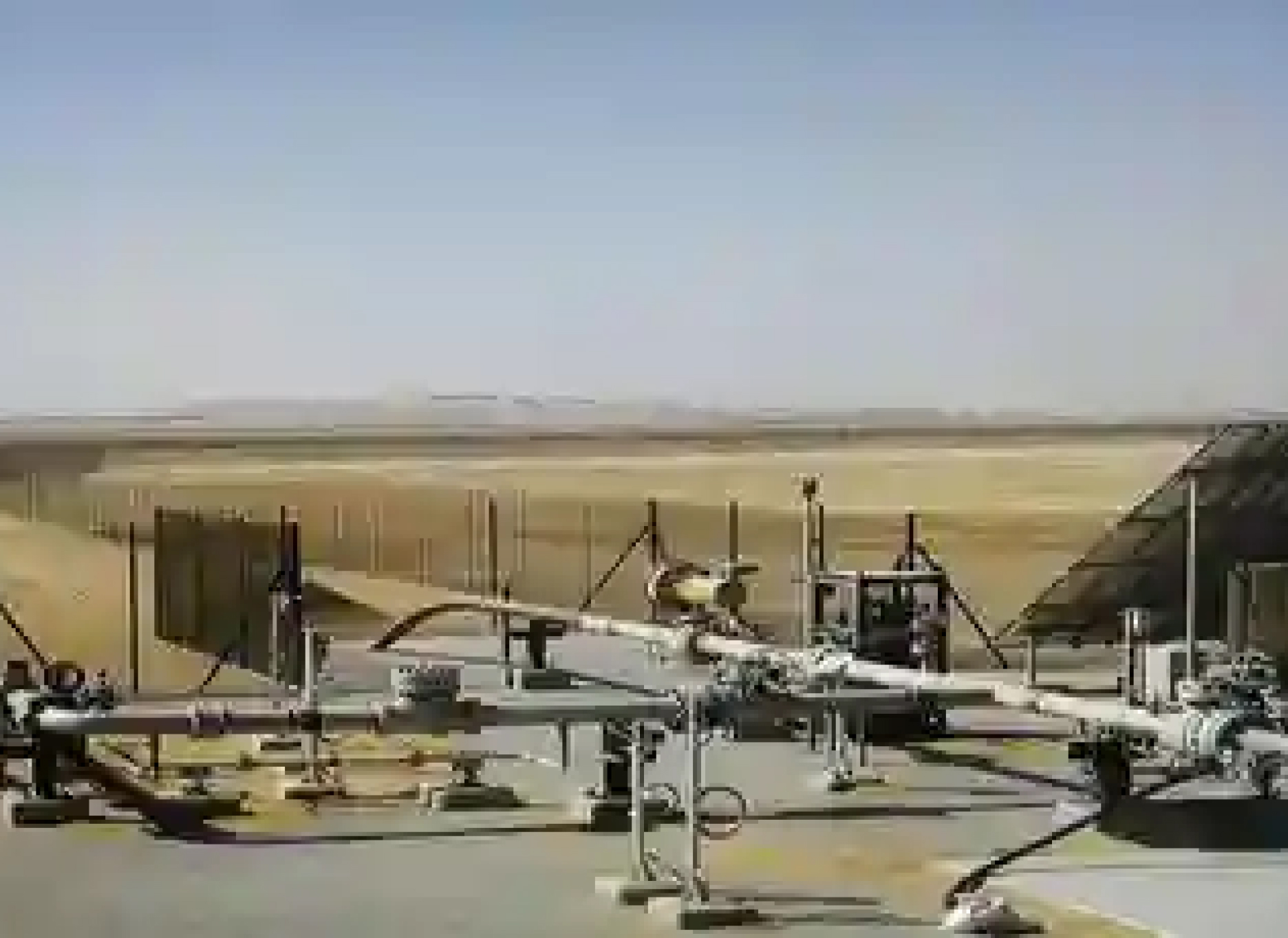

Pipeline Monitoring
Downstream
CogniSight DEVICE system helps monitor and transmit the temperature, pressure, flow, and vibration data in an oil pipeline that stretches from end to end.
Its sensors are connected to a series of SAABIE Software Solution DEVICE These modules help process and transmit data to a control room, then to the Cloud.i
Oil pipelines are made from 0.91 ~ 1.82 m steel or plastic tubes. They have an inner diameter ranging between 10.1 to 121.9 cm. Most pipelines are buried at a typical depth of about 0.91 ~ 1.82 m. As crude oil contains varying amounts of wax, buildups may occur within a pipeline. Often these pipelines are inspected and cleaned using pipeline inspection gauges. These gauges can detect anomalies in the pipes such as dents, metal loss/ corrosion, cracking, or other mechanical damage
Pump Station Monitoring
Downstream
The oil and gas industry includes global processes of exploration, extraction, refining, transporting, and marketing. Oil is transported through cross continental pipelines using pump stations. It usually flows at an approximate speed of 1 ~ 6 m per second..
CogniSight DEVICE the monitoring system can be installed at several pumping stations along the main pipeline at a distance of 30 km. CogniSight DEVICE allows engineers to monitor all stations from the Central Control Room through our platform. The pumping stations themselves are equipped with various installed sensors for measuring pressure and temperature. These sensors are connected to the PLC, which is connected to the CogniSight DEVICE for data processing, allowing technical personnel to check the pump's condition on site. These devices are then connected to a switch that returns data to the central control room via fiber optic cables.
CogniSight DEVICE Helps engineers at the central checkpoint to see the condition of each pumping station, allowing them to act quickly and efficiently in emergencies.
